Model No.: PX-WSZ-JXB
Product Name: Automatic Roll Core Machine
PX-WSZ-JXA Type Paper Tube Making Machine
Peixin spiral paper tube making machine operates on principles of electromagnets and levers for around-the-clock tube forming and cutting operations. As ribbons of cardboard are wrapped around the mandrel, finished paper tubes are cut to length at the right time. Fast speed tube forming, self-drying, and rewinding capabilities make this spiral-wound tube forming machine the preferred method for producing paper tubes used in toilet paper, plastic film, and non-woven fabrics industry.
| Model No. | PX-WSZ-JXA (type) |
| Paper Tube Diameter (mm) | Φ30~60(as per customer requirements) |
| Layers of Cardboard (mm) | 2~5 layers (as per customer requirements) |
| Speed | 0-20 m/min |
| Tube Length | Variable |
| Required Power | 3. 5KW (380V, 50Hz) |
| Overall Dimensions (mm) | 3500×1000×1600 |
| Machine Weight | 1500kg |

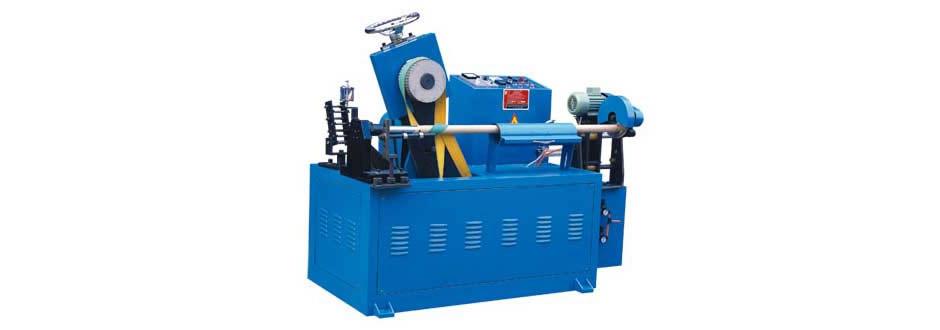

PX-WSZ-JXB Type Paper Core Making Machine
| Model No. | PX-WSZ-JXB (type) |
| Paper Tube Diameter (mm) | Φ30~60(as per customer requirements) |
| Layers of Cardboard (mm) | 2~3 layers (as per customer requirements) |
| Speed | 0-15 m/min |
| Tube Length | adjustable |
| Required Power | 3.5KW (380V, 50Hz) |
| Overall Dimensions (mm) | 2500×1000×1500 |
| Machine Weight | 1000kg |
