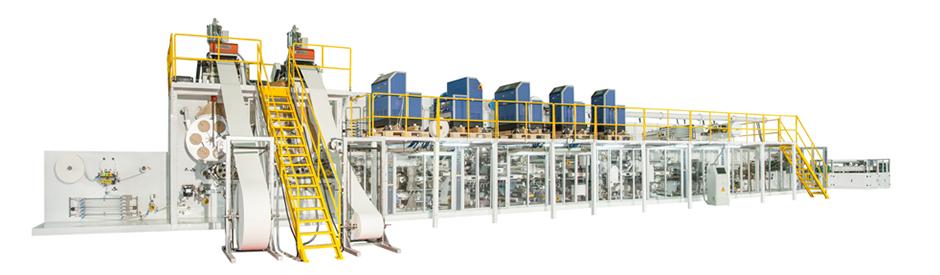

Full Servo, Full Function Adult Diaper Production Line

Model No.
PX-CNK-300-SF Full-servo Full-function Adult Diaper Production Line
PX-CNK-250-BSF Semi-servo Full-function Adult Diaper Production Line
PX-CNK-200-BP Fully-automatic Full-function Adult Diaper Production Line
PX-CNK-150 Semi-automatic Full-function Adult Diaper Production Line

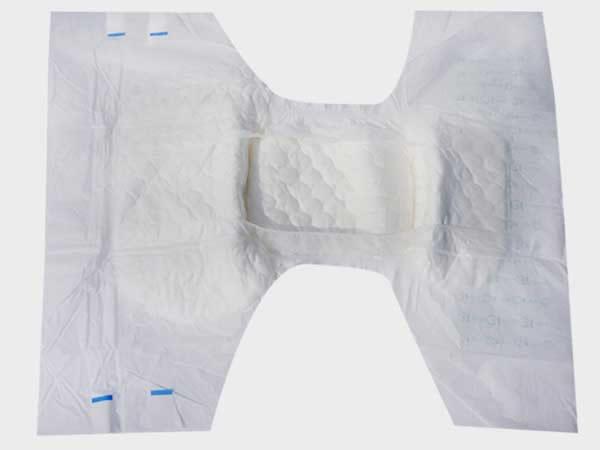

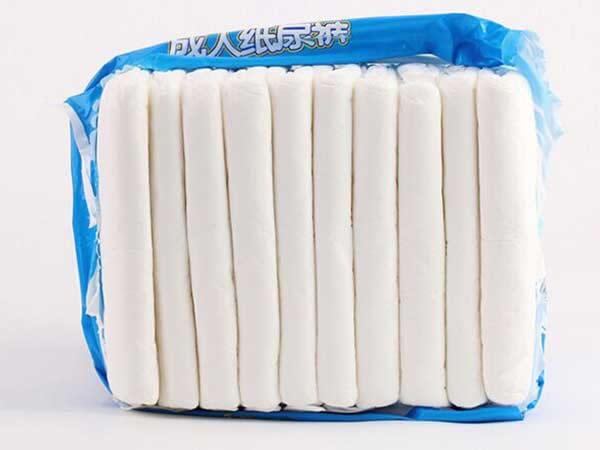

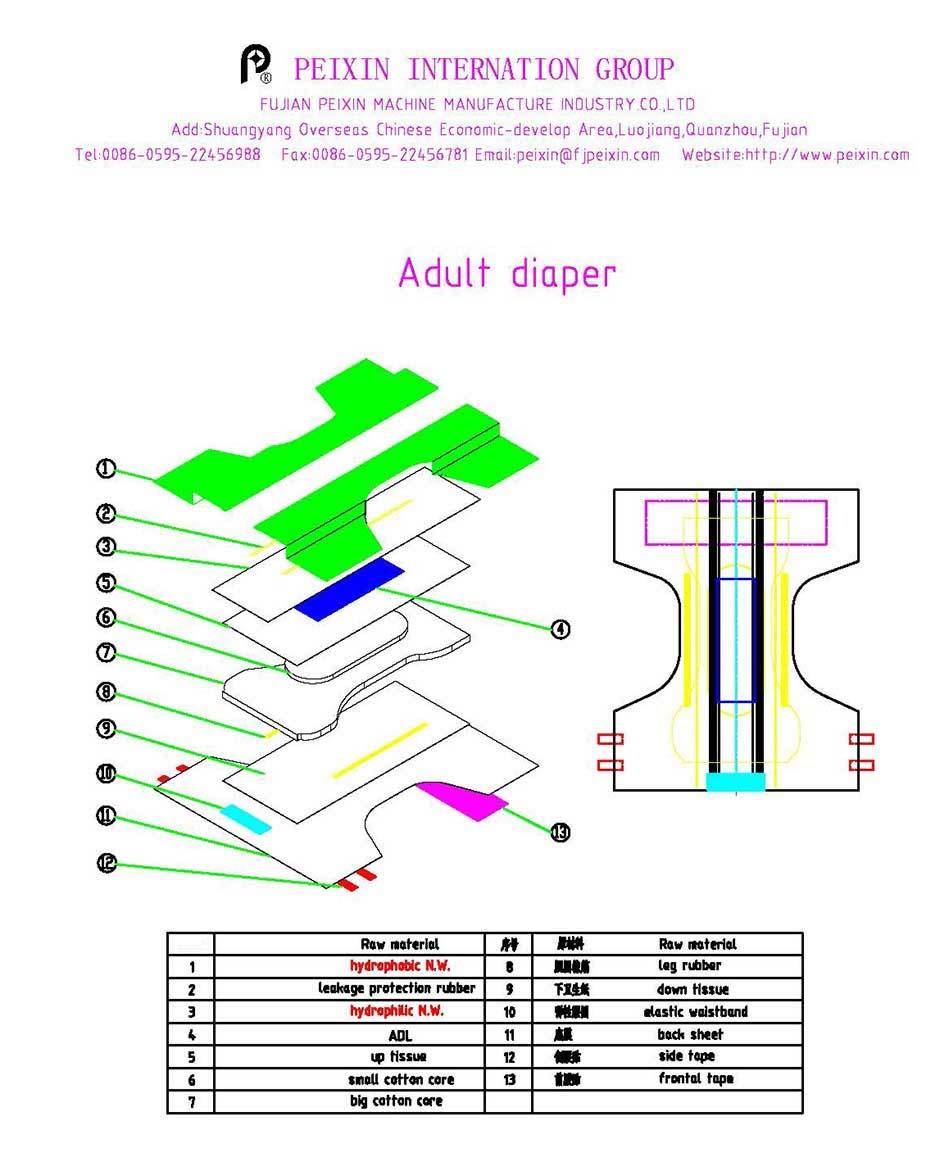

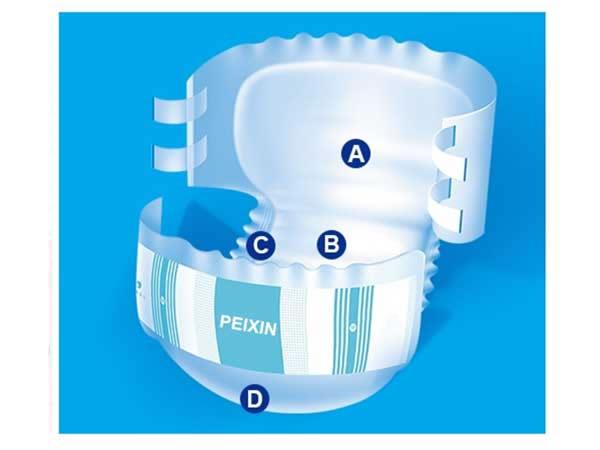

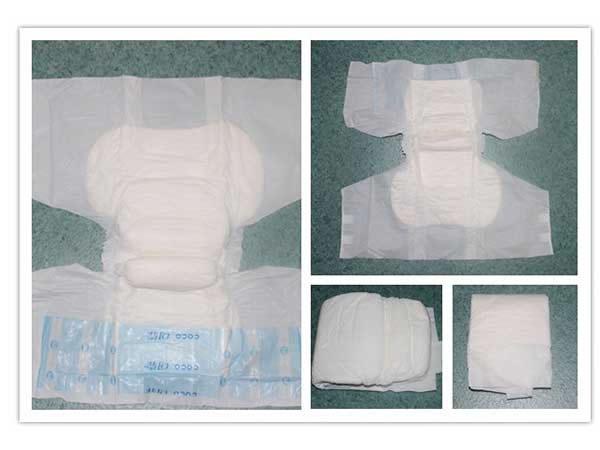

Finished Products

There are different of machine models as follows:

PX-CNK-150 Adult Diaper Machine
Design speed:150pcs/min
Regular speed:100pcs/min
Inquiry From

PX-CNK-200-BP Adult Diaper Machine
Design speed:200pcs/min
Regular speed:150pcs/min
Inquiry From

PX-CNK-250-BSF Adult Diaper Machine
Design speed:250pcs/min
Regular speed:160-180pcs/min
Inquiry From

PX-CNK-300-SF Adult Diaper Machine
Design speed:300pcs/min
Regular speed:200pcs-220pcs/min
Inquiry From

Main Technical Parameters
Total power (excludes glue applicator and air compressor):
Full-servo adult diaper production line: 500KW
Semi-servo adult diaper production line: 400KW
Fully-automatic adult diaper production line: 350KW
Scrap rate (excludes the scrap caused by glue applicator): ≤4%

Design speed:
Full-servo adult diaper production line: 300pcs/min
Semi-servo adult diaper production line: 250pcs/min
Full-automatic adult diaper production line: 200pcs/min

Regular speed (m-size):
Full-servo adult diaper production line: 200pcs/min
Semi-servo adult diaper production line: 160-180pcs/min
Full-automatic adult diaper production line: 150pcs/min
Overall dimensions (L×W×H): 35×13×4.5m
Weight:100T(Approximately)
