Model No.: PX-SJZ-ZD30

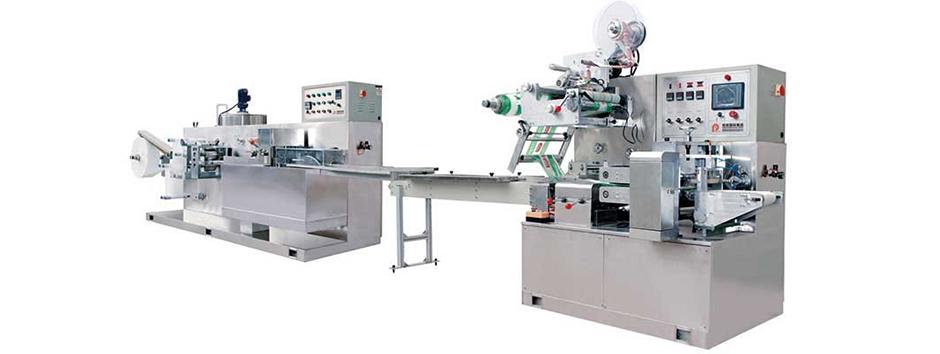

Product Name: 5-30 Pieces Wet Wipe Folding and Packing Machine

Brief Description
1. Product-contact parts are made of 304 stainless steel. A cleanly stainless steel design is not only visually appealing but also meets high hygiene standards.
2. In-line wetting system ensures a uniform moisture content. Automatic counting makes subsequent packaging operations easier. The number of wet wipes per pack is adjustable.
3. PLC system and touch screen display allow easy operation, fast production, and excellent stability.
4. Note that this wet wipes folding and packing machine is a semi automatic production line. Wet wipes need to be moved manually from the folding machine to the packing machine. This operation is very easy.

Main Technical Parameters
1. Power Supply: 380V, 50Hz
2. Total Power: 13KW (folding unit: 7KW, packing unit: 6KW)
3. Suitable material: wet-strength paper, Spunlace non-woven fabrics
4. Control system: PLC control system, color touch screen
5. GSM material(gram per square meter): 40~80 g/m2
6. Jumbo roll size: (150~200)×Ф1000 mm (W×D)
7. Single wipe unfolded size: 200×(160~200) mm (L×W)
8. Single wipe folded size : 100×(60~100) mm (L×W)
9. Folding speed: 300~500 pcs/min
10. Packing speed: 40~60 packs/min
11. Other functions: Punching, roll printing for adding production date.
12. Final product size: (140~220)×(70~100)×(10~30) mm (L×W×H)
13. Machine size: (5150~9500)×1120×2100 mm (L×W×H)
14. Machine weight: 3300 kg
15. Auto-counting, auto-wetting
