Potty Training Pants Production Line

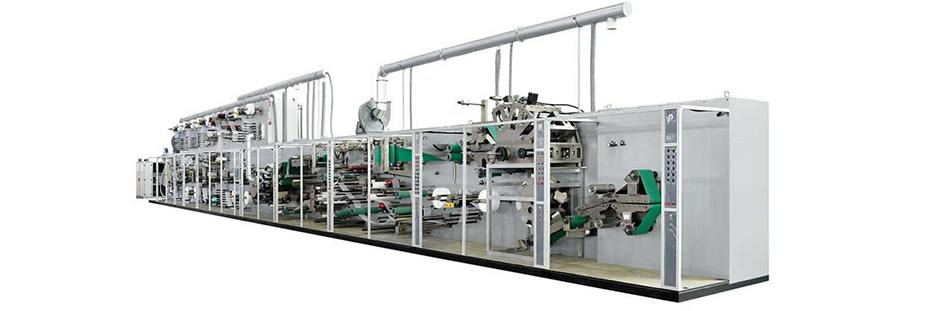

Full-Servo, Full-Function Baby Diaper (with Elastic Back Ears) Production Line (T-Shape)

Model No.
PX-LLK-600-SF Full Servo Pull-ups Baby Diaper Production Line
PX-LLK-550-BSF Semi Servo Pull-ups Baby Diaper Production Line

There are different of machine models as follows:

PX-LLK-600-SF Baby Diaper Machine
Design speed: 600pcs/min
Regular speed: 400pcs/min
Inquiry From

PX-LLK-550-BSF Baby Diaper Machine
Design speed: 550pcs/min
Regular speed: 350pcs/min
Inquiry From

Other optional functions can be chosen upon customers' requirements
a. Full-servo control stacker (Auto Bagging Machine)
b. Automatic bagging sealing machine

Main Technical Parameters
1. Completed products: XL, L, M, S-size pull-ups baby diaper
2. Design speed: 600pcs/min
3. Regular production speed (M-size): 400pcs/min
4. Overall dimensions (L×W×H): 30mx7mx3.4m(With stacker)
5. Total power (excluding glue applicator and air compressor): 300KW(380V,50HZ)
6. Weight: About 100 Ton
7. Can be fitted with full servo control stacker(Auto Bagging machine), production speed 50 bags/Min

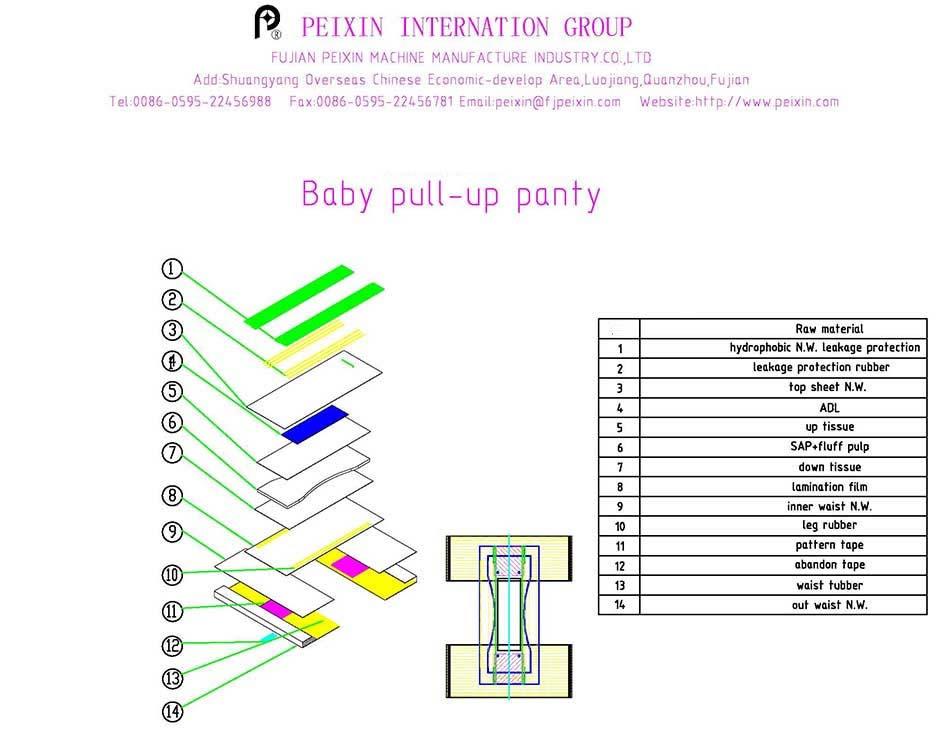

Design Drawing
Inquiry Form
