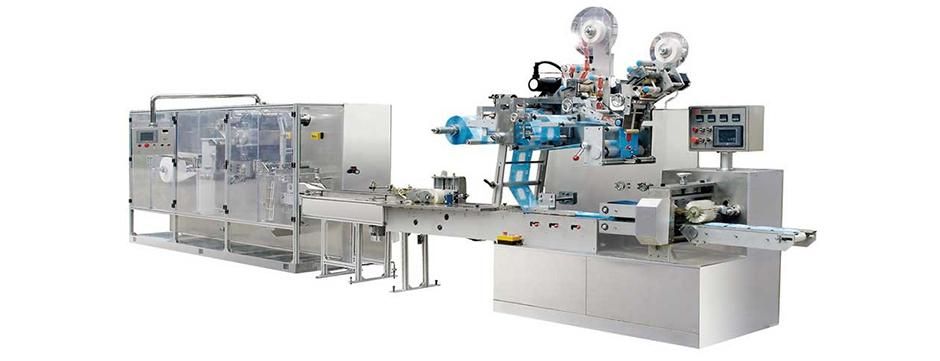

Wet Wipe Production Line, 5-20 Pieces

Model No.: PX-SJZ-ZDBZ20
Product Name: 5-20 Pieces Full Auto Wet Wipe Production Line

Brief Description
Known for its easy operation and consistent outcome, the wet wipes production line features a hygienic design with all product-contact parts made of stainless steel. Advanced PLC system delivers a hands-free operation. Each step, including folding, adding wipe solution, cut-to-length, counting and stacking, conveying, and packaging, is performed fast all while maintaining good hygiene.

Main Technical Parameters
1. Power Supply: 380V, 50HZ
2. Total Power: 12KW (folding unit: 6KW; packing unit: 6KW)
3. Jumbo roll size: (160~220)×Ф1000mm (width×diameter)
4. Construction: 304 stainless steel housing
5. Suitable material: Spunlace non-woven fabrics, hot-rolled non-woven fabrics
6. GSM of material: 40~80 g/m2
7. Single sheet size (unfolded): (160~220)×(160~220) mm (L×W)
8. Single sheet size (folded): (80~110)×(65~75) mm (L×W)
9. Folding speed: 200~300 pcs/min
10. Folding type: Z, V, etc.
11. Counting method: Automatic counting system
12. One Package size: (140~180)×(70~90)×(10~30) mm (L×W×H)
13. Packing speed: 20~40 packs/min
14. Customizable options: Punching unit, labeling applicator, Roll type Date printing unit
15. Control system: PLC control system, color touch screen
16. Machine size: 7900×1100×2200 mm ( L×W×H)
17. Water tank size: 1000×1000×1900 mm ( L×W×H)
18. Machine Weight: 4800 kg
