Model No.
PX-CD-220-SF Full-servo Underpad & Pet Training Pad Production Line
PX-CD-200-BSF Semi-servo Underpad & Pet Training Pad Production Line
PX-CD-180-BP Full-automatic Underpad & Pet Training Pad Production Line

Bed Pad

There are different of machine models as follows:

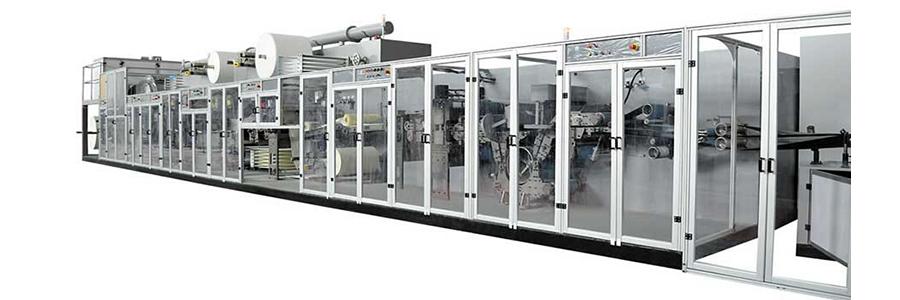

PX-CD-220-SF Disposable Underpad Machine
Design speed: 300m/min
Regular speed: 220m/min
Inquiry From

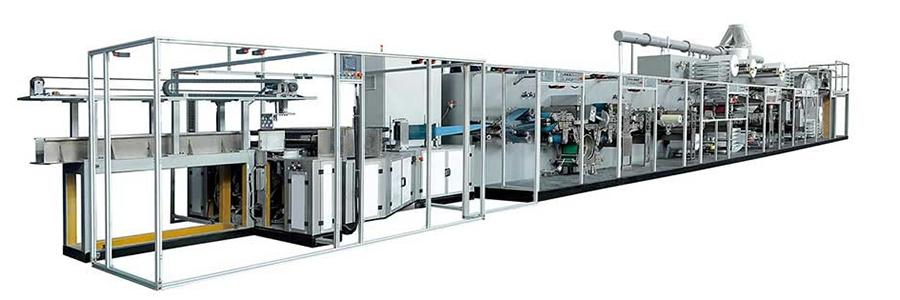

PX-CD-200-BSF Disposable Underpad Machine
Design speed: 260m/min
Regular speed: 180m/min
Inquiry From

PX-CD-180-BP Disposable Underpad Machine
Design speed: 220m/min
Regular speed: 140m/min
Inquiry From

Bed Pad

Main Equipment Parameters
1. Design speed: 300 meters/min

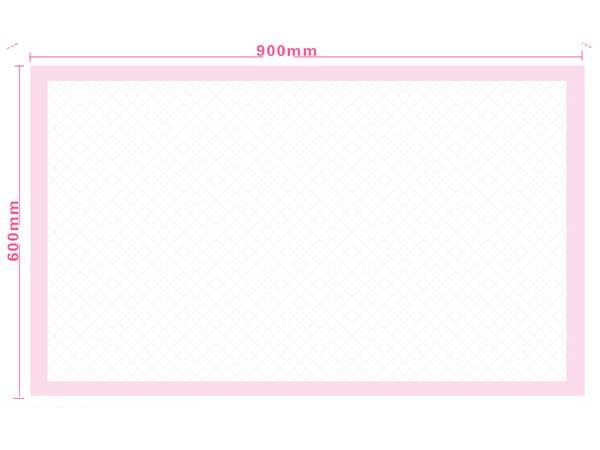

2. Production speed: 220meters/min(width 600mm) 200meters/min(width 800mm)
3. Overall dimensions: 22m(L)×3.5m(W)×2.5m(H)
4. Machine power: approx 300KW (380V, 50Hz)
5. Machine weight: about 70 T

Brief Description

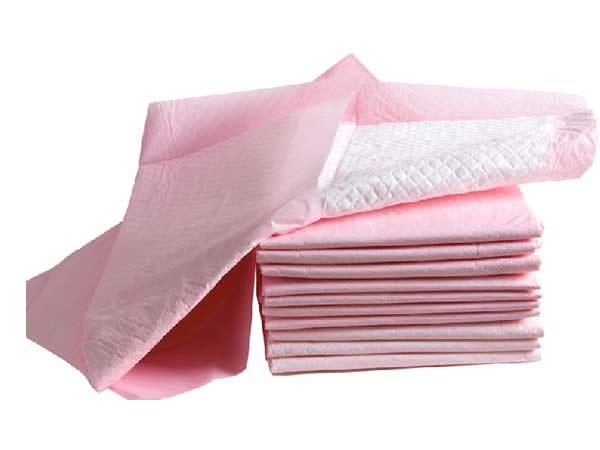

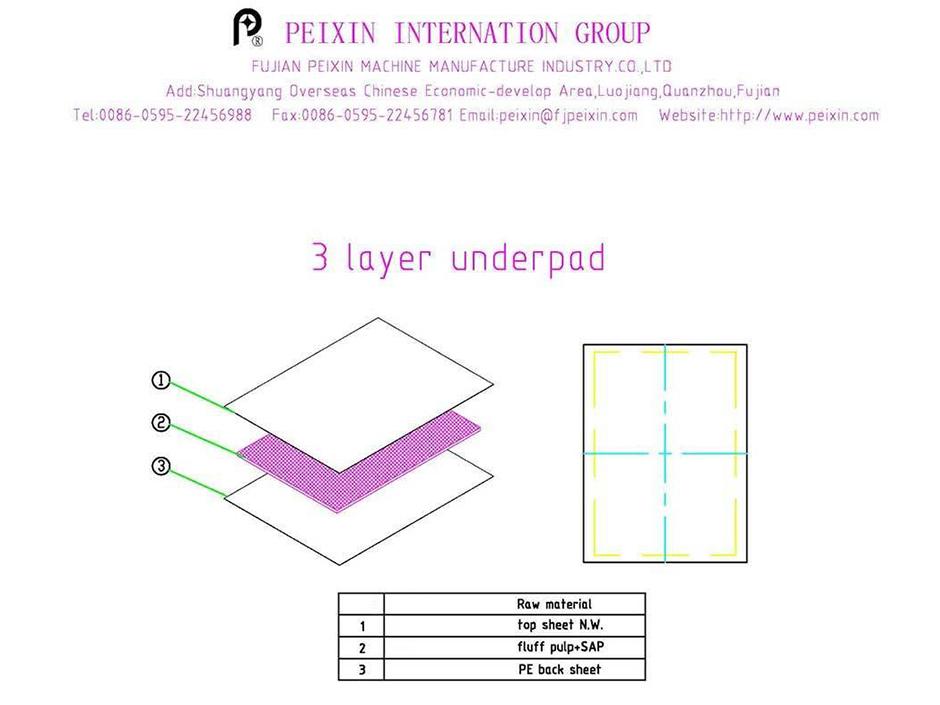

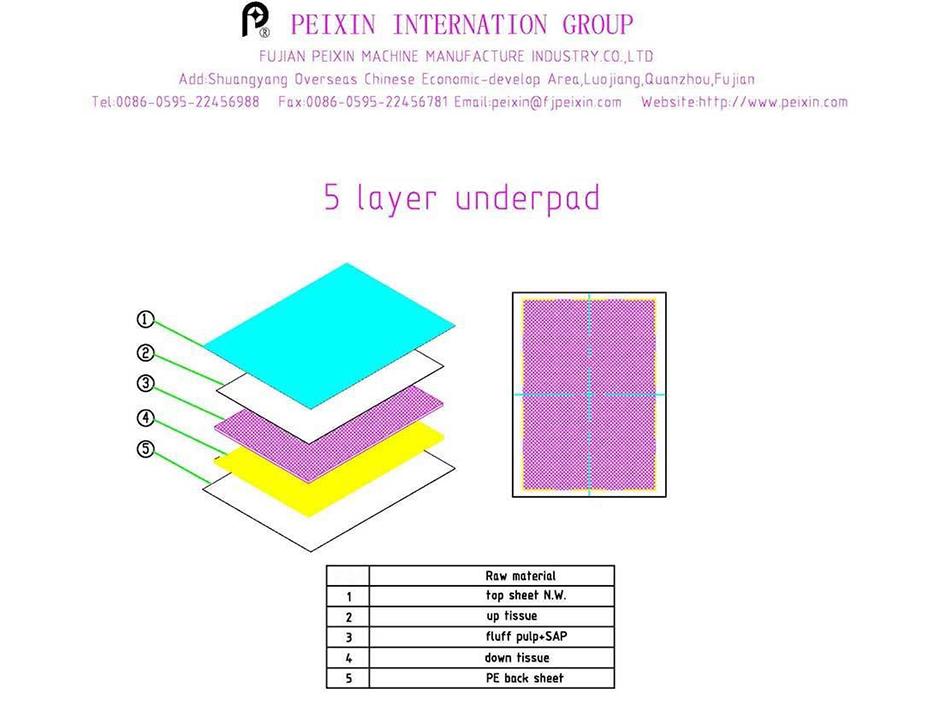

Can produce 3-ply (PE film, fluff pulp, non-woven fabrics) or 5-ply (PE film, bottom-layer tissue, fluff pulp, top-layer tissue, non-woven fabrics) mattress pad & pet training pad, at high speed.

Raw Material Specs
1. Cotton core: 34g/m2 (includes top and bottom-layer tissue, fluff pulp, which can be untreated, semi-treated or treated pulp, as well as recycled pulp)
2. Non woven fabrics: 9g/m2
3. PE/PP: 15g/m2
4. SAP: 8g/m2

Raw Material Unwinding Diameter and Weight:
1. Top and Bottom Layer Tissue Roll Diameter: Φ960mm Weight: 125kg
2. Non woven fabrics Roll Diameter: Φ960mm Weight: 125kg
3. PE/PP Roll Diameter: Φ600mm Weight: 60kg
4. Wood pulp Roll Diameter: Φ1500mm Weight: 500kg

Finished Product Folding Method
1. C-fold, requiring two or three folds
2. Z-fold, requiring two or three folds
3. W-fold, requiring two or three folds
