Baby Diaper Production Line (I-Shape)

Full-Servo, Full-Function Baby Diaper Production Line (I-Shape)

Model No.
PX-NK-600-SF Full-Servo, Full-function Baby Diaper Production Line (I shape)
PX-NK-550-BSF Semi-Servo, Full-function Baby Diaper Production Line (I shape)
PX-NK-500-BP Fully Automatic, Full-function Baby Diaper Production Line (I shape)
PX-NK-450 Semi-automatic, Full-function Baby Diaper Production Line (I shape)

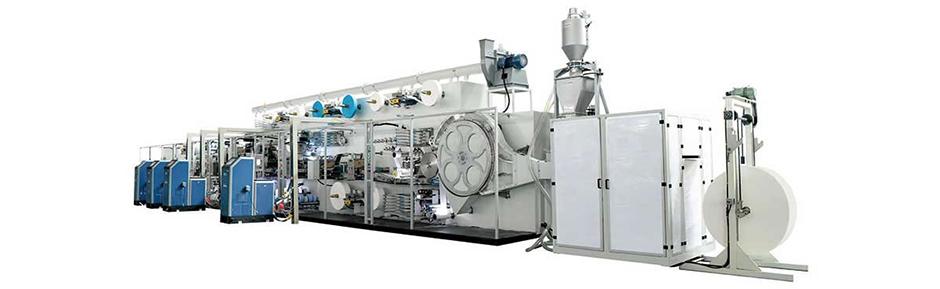

Full-Servo Full-function Baby Diaper Production Line (I shape)

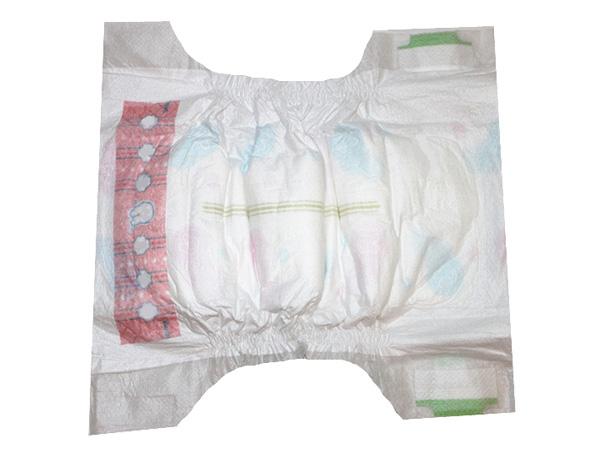

Baby Diaper

There are different of machine models as follows:

PX-NK-450 Baby Diaper Machine
Design speed: 450pcs/min
Regular speed: 350pcs/min
Inquiry From

PX-NK-500-BP Baby Diaper Machine
Design speed: 500pcs/min
Regular speed: 250pcs/min
Inquiry From

PX-NK-550-BSF Baby Diaper Machine
Design speed: 550pcs/min
Regular speed: 250pcs/min
Inquiry From

PX-NK-600-SF Baby Diaper Machine
Design speed: 600pcs/min
Regular speed: 350pcs/min
Inquiry From

Main Technical Parameters
1. Completed products: XL, L, M, and S-size baby diaper
2. Designed speed: 600 PCS/min
3. Regular speed: 500 PCS/min
4. Overall dimensions: 28m(L)×7m(W)×3.4m(H) (including shredder and stacker)
5. Machine power: approx. 300KW (380V, 50Hz)
6. Machine weight: about 52 T
7. Fully servo driven stacker (Automatic Bagging Machine)
8. Production speed: 25 bags/min

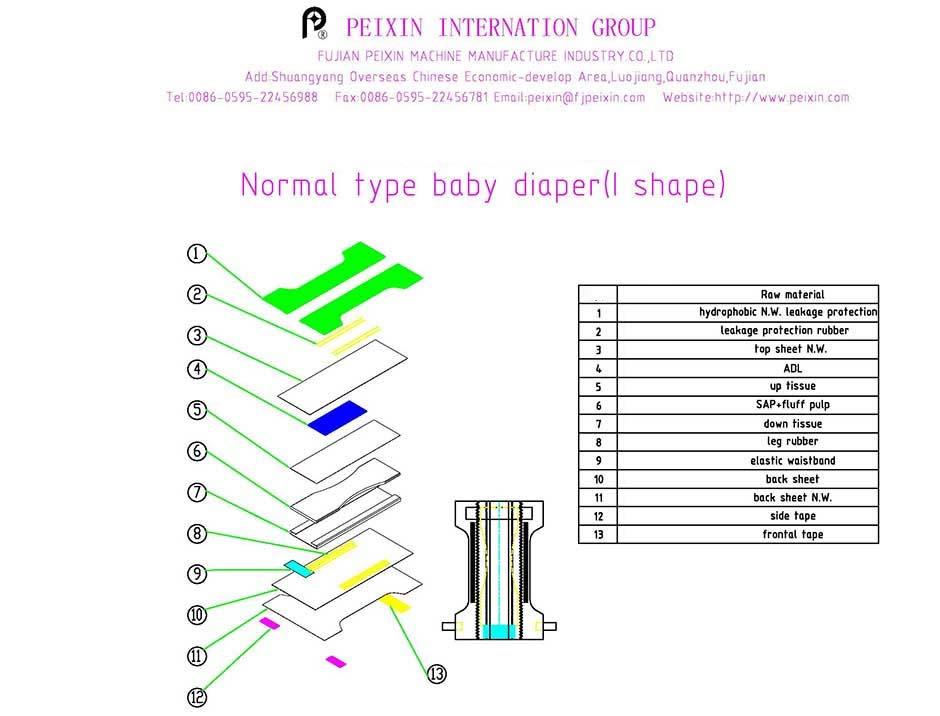

Baby Diaper Design Drawing
